Blender Redesign
Finding ways to improve an existing product
An immersion blender was disassembled, measured and studied to determine the manufacturing process, materials used and possible areas for improvement. A new design was then developed using the knowledge gained from the process with inspiration from the current market.
Individual Project - 2019 (2nd Year - Semester two)

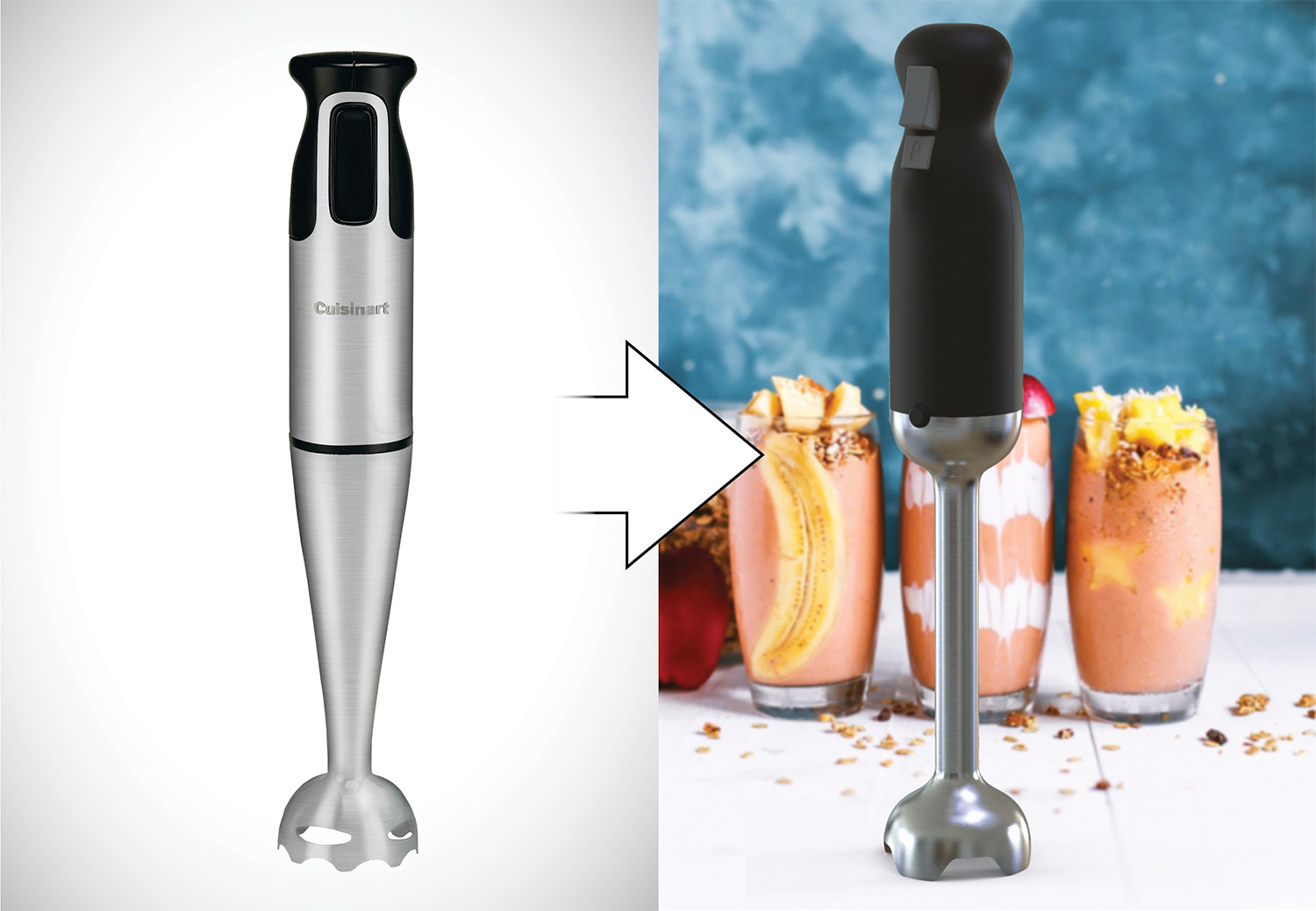

![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/8c682179-a192-447d-ac6c-ce1eb3022f91_rw_1920.jpg?h=72a39e37dd078bbc2b6701549924ea37)
Disassembly
The original blender was taken apart to learn the materials and manufacturing process
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/99268332-be39-4424-9e5b-1f4e2ba9d6bf_rw_1920.jpg?h=b6d72bd2c35e2aac80904c28c9e5bdd3)
Specifications

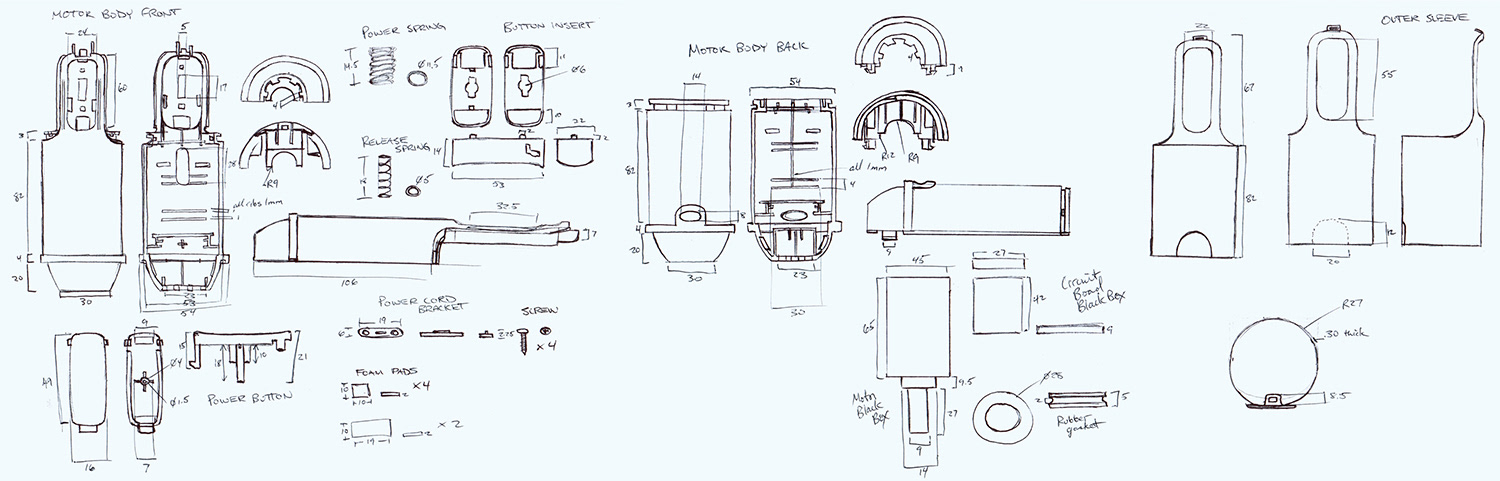

Making a parts list and measuring all components
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/593f9a62-9596-46d6-be93-1b02bbab4699_rw_1920.jpg?h=8722d9f33b34044adef9884bde3731e2)

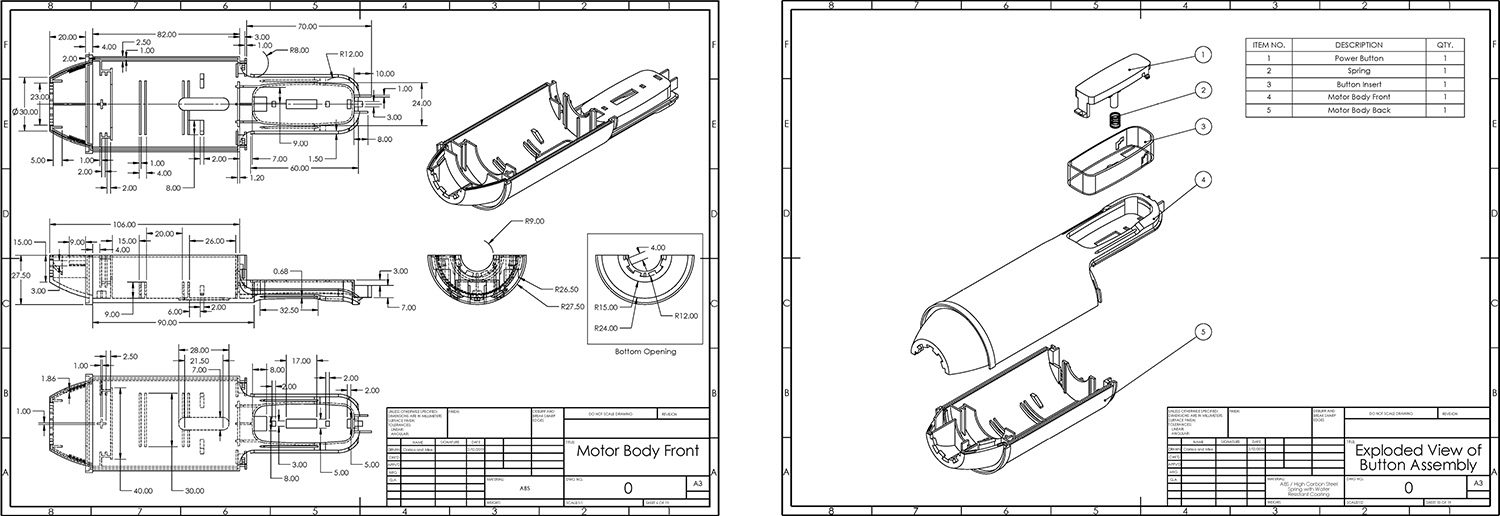

Recreating the original blender in Solidworks to produce technical drawings
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/f5e7a2e2-9ef2-4a83-b6fd-fc38e0b4ceed_rw_1920.jpg?h=fb21d53a98a96c8fb03cba1f711634a2)
Opportunities for Innovation
What design features could be improved?
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/46af570f-10c2-46d8-bdad-d49fcf8690e8_rw_1920.jpg?h=70b11f5e2b5d6c60406ac46498800d85)

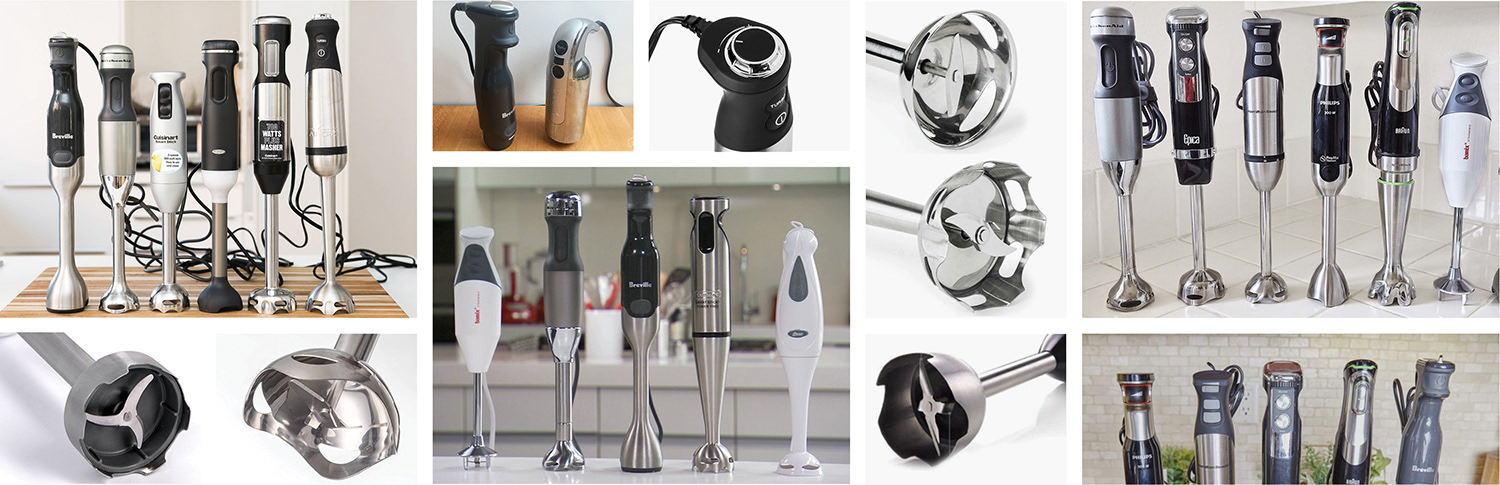

Inspiration

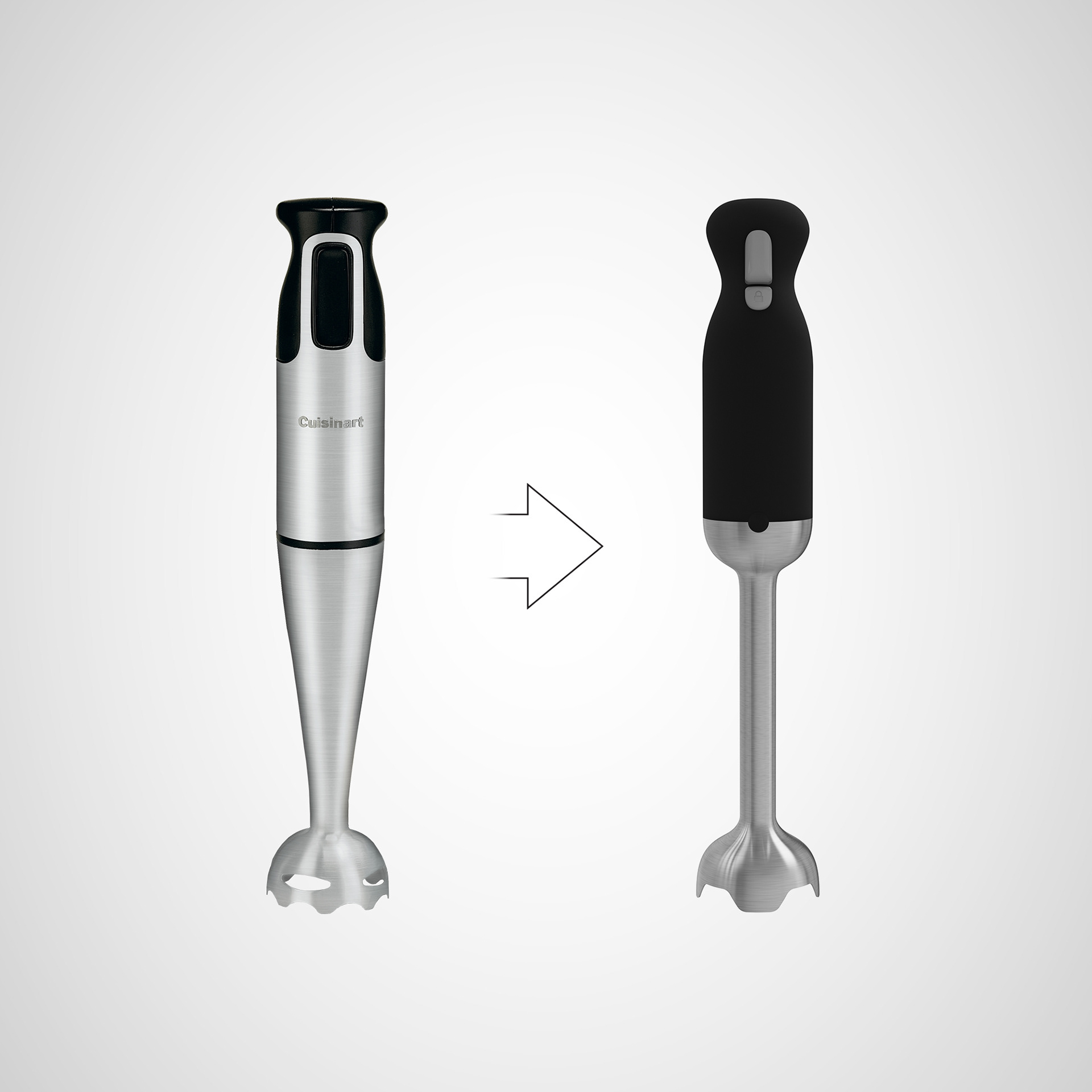

Current market trends in form, function, colour, and materials
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/ca849e20-d729-4e7e-8b03-9fff3f869d29_rw_1920.jpg?h=eda19a42f4fc58fe09e430d5332a056b)

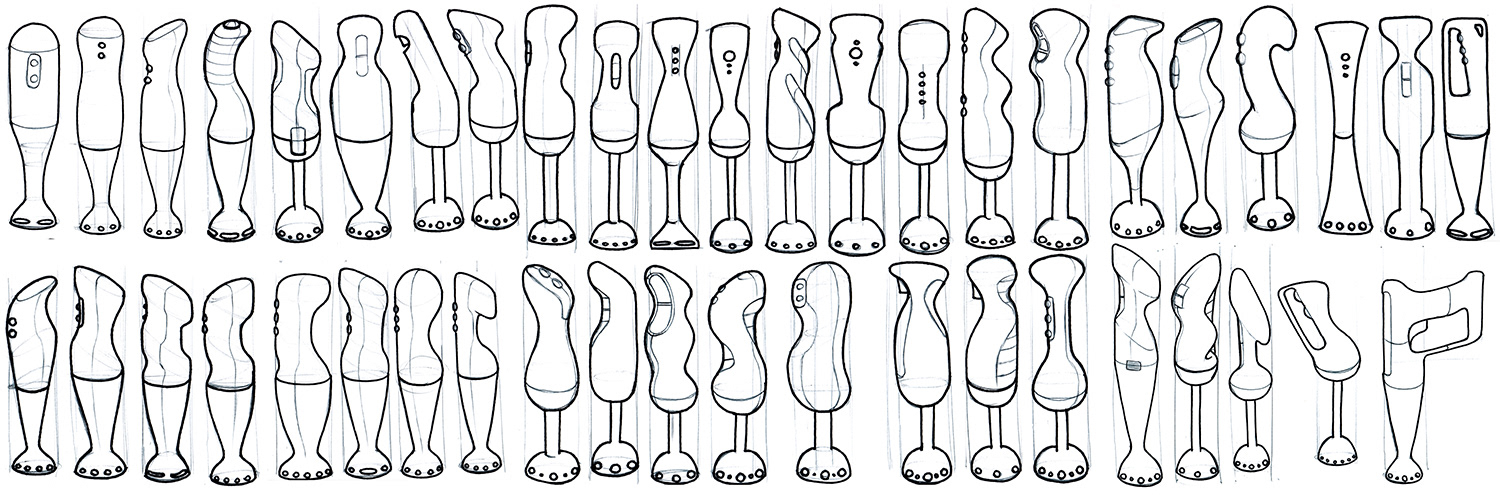

Ideation
Initial form development
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/302f2bd2-13a0-4110-b67f-e5bd91184b1d_rw_1920.jpg?h=283280ad724b03ca51888b4fe1c96508)

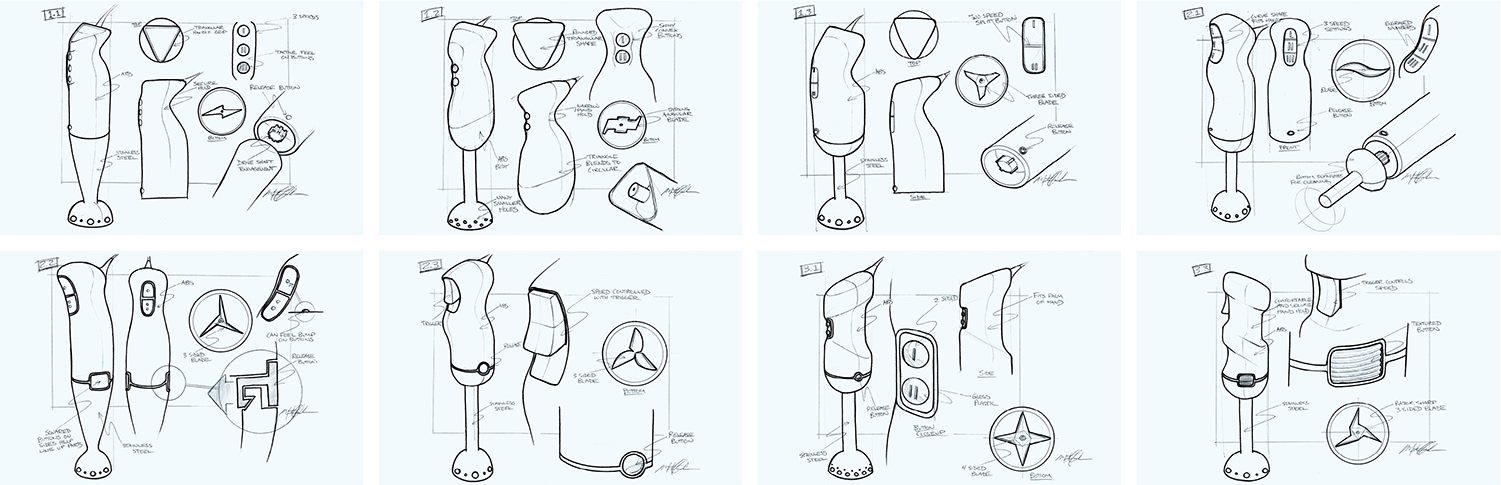

Exploration
Adding details and variations to selected forms
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/604a77fe-d2e2-4336-aa72-beb0669b3a45_rw_1920.jpg?h=c7a552ac3de6f0c8f520af2be9c45741)

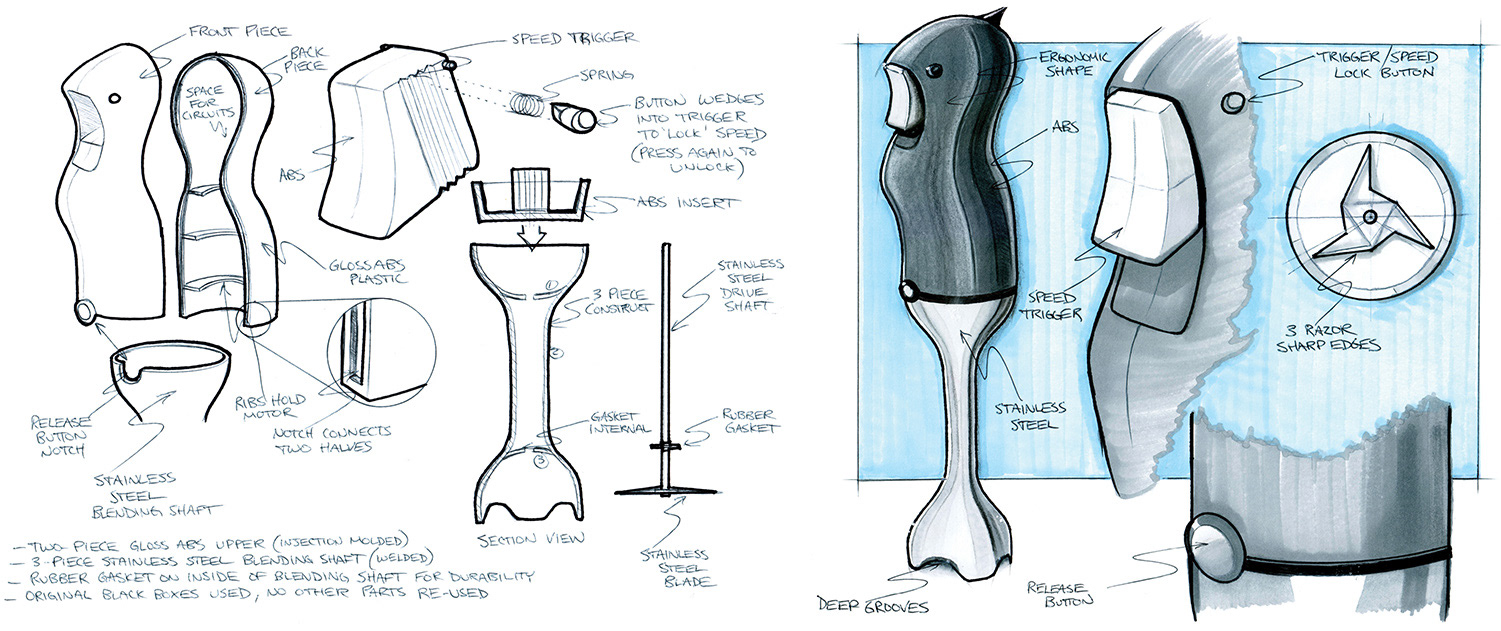

Refinement
Narrowing down the details for the final concept
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/1099026b-f81d-48b0-a73f-f9afb44b52fe_rw_1920.jpg?h=895508815fa27dab3c7a1ca8597e89bf)

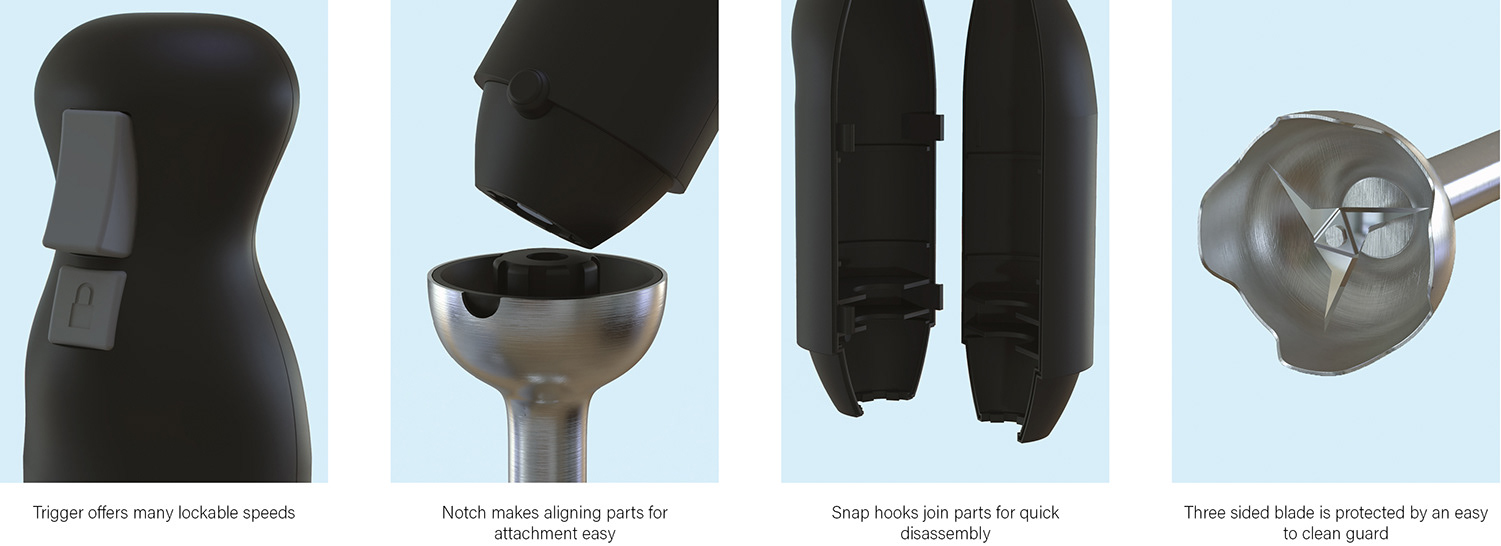

Final Design

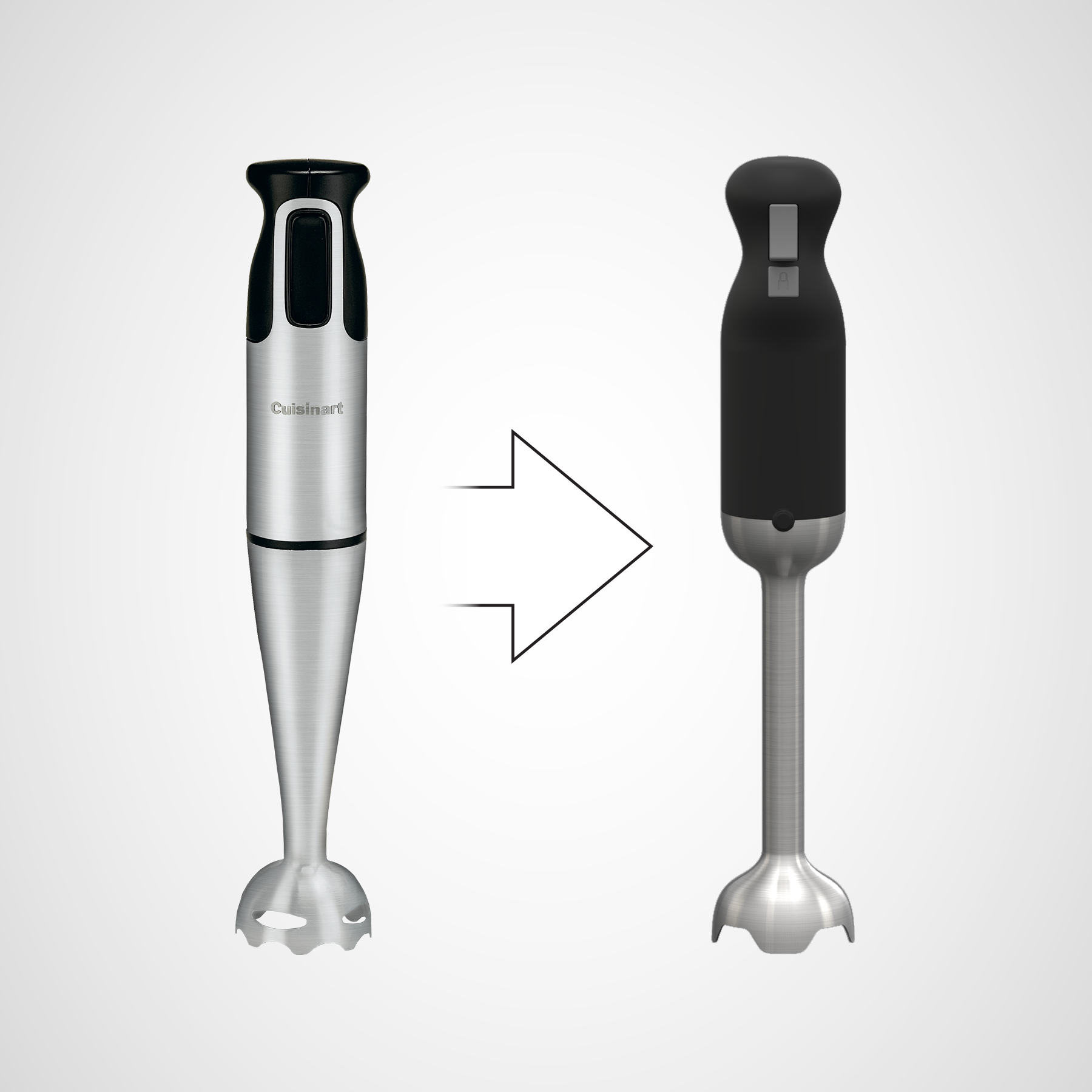

Detailing the features
![](https://cdn.myportfolio.com/f48cde11-a598-4039-93d8-e9548801f8f2/33a1f725-975c-4cf8-81ae-d3b684b35c94_rw_1920.jpg?h=21ebf0716d677b64007b028b96ce1351)
